Aluminum Composite Material, or ACM, has become one of the most popular substrates for these signs. It's lightweight, durable, and easy to fabricate with tactile elements. But choosing ACM doesn't give any business a compliance shortcut. The same technical rules apply regardless of substrate.
This guide breaks down what ADA compliance actually requires for ACM signs, where businesses commonly go wrong, and how to source signage that meets code the first time.
Key Takeaways
- ADA compliance for ACM signs covers tactile characters, Grade 2 Braille, contrast, mounting height, and finish
- Non-compliant signage creates legal exposure, fines, and reputational risk
- ACM suits ADA signs because it is durable, lightweight, and flexible on finish
- An experienced ADA manufacturer like Caribee Sign helps lock in compliant specs and production
What is ACM and Why It's Used for ADA Signs
ACM consists of two aluminum sheets bonded to a polyethylene core. The result is a rigid, lightweight panel that's far easier to handle and fabricate than solid aluminum.
Manufacturer specs vary by brand: DIBOND uses 0.012-inch aluminum facers, while ALUCOBOND uses 0.020-inch facers with panel thicknesses ranging from 3mm to 6mm.
Why sign shops favor ACM for interior applications:
- Smooth, consistent surface for applying tactile lettering and Braille domes
- Lightweight construction simplifies mounting near doors and walls
- Holds a wide range of finishes, from brushed metal to matte and two-tone combinations
- Resists warping better than many composite alternatives
ACM tends to be more cost-efficient than raw aluminum for the same durability profile, and it fabricates cleanly with CNC routing and laser engraving.
None of that changes the compliance math. An ACM sign identifying a permanent room still has to meet the exact same Section 703 requirements as a sign made from acrylic or stainless steel.
The substrate affects manufacturing and finish. It has zero bearing on whether Braille placement or mounting height meets code.
ADA Requirements for ACM Signs
Compliance requirements are specific enough that "close" isn't good enough. Here's what federal standards require for ADA signage on ACM and other substrates.

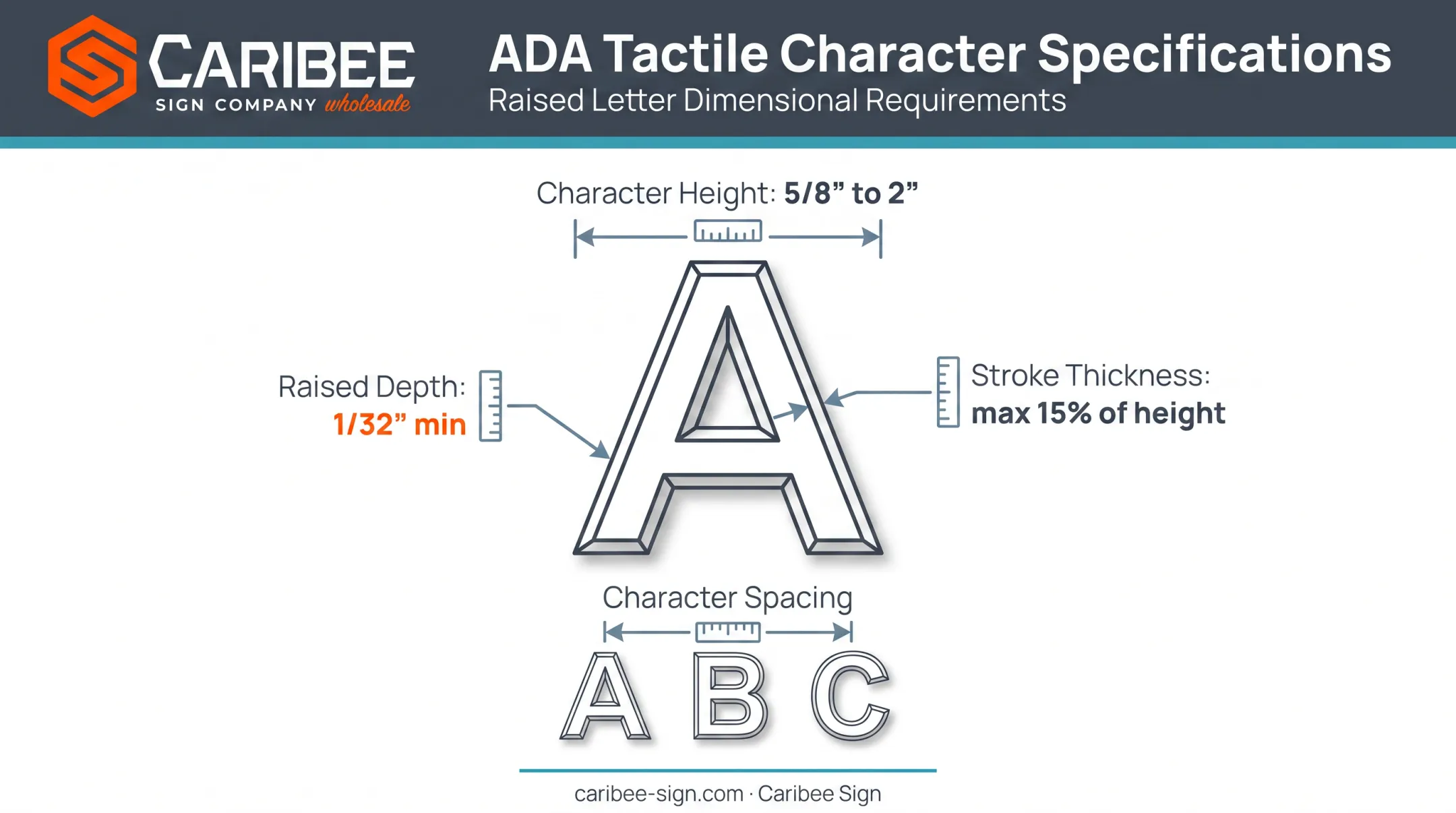

Tactile Characters and Font Rules
- Raised depth: minimum 1/32 inch (0.8 mm) above the background
- Character height: 5/8 inch to 2 inches, based on uppercase "I"
- Stroke thickness: maximum 15% of character height
- Style: uppercase, sans serif, never italic, script, or decorative
- Spacing (rectangular): at least 1/8 inch; no more than four times stroke width
- Spacing (other profiles): 1/16 inch minimum at the base
Braille Specifications
Grade 2 Braille is required below the tactile text, separated by at least 3/8 inch from any raised characters or decorative borders. Dot specifications are tight:
- Dot base diameter: 0.059–0.063 inch
- Same-cell spacing: 0.090–0.100 inch
- Dot height: 0.025–0.037 inch
Contrast and Finish
Signs need light-on-dark or dark-on-light contrast with a non-glare finish. The federal standard doesn't specify an exact percentage.
The often-cited 70% contrast figure comes from 1991 guidance and was always voluntary, not a hard mandate, according to the International Sign Association. Strong contrast remains the safest practice.

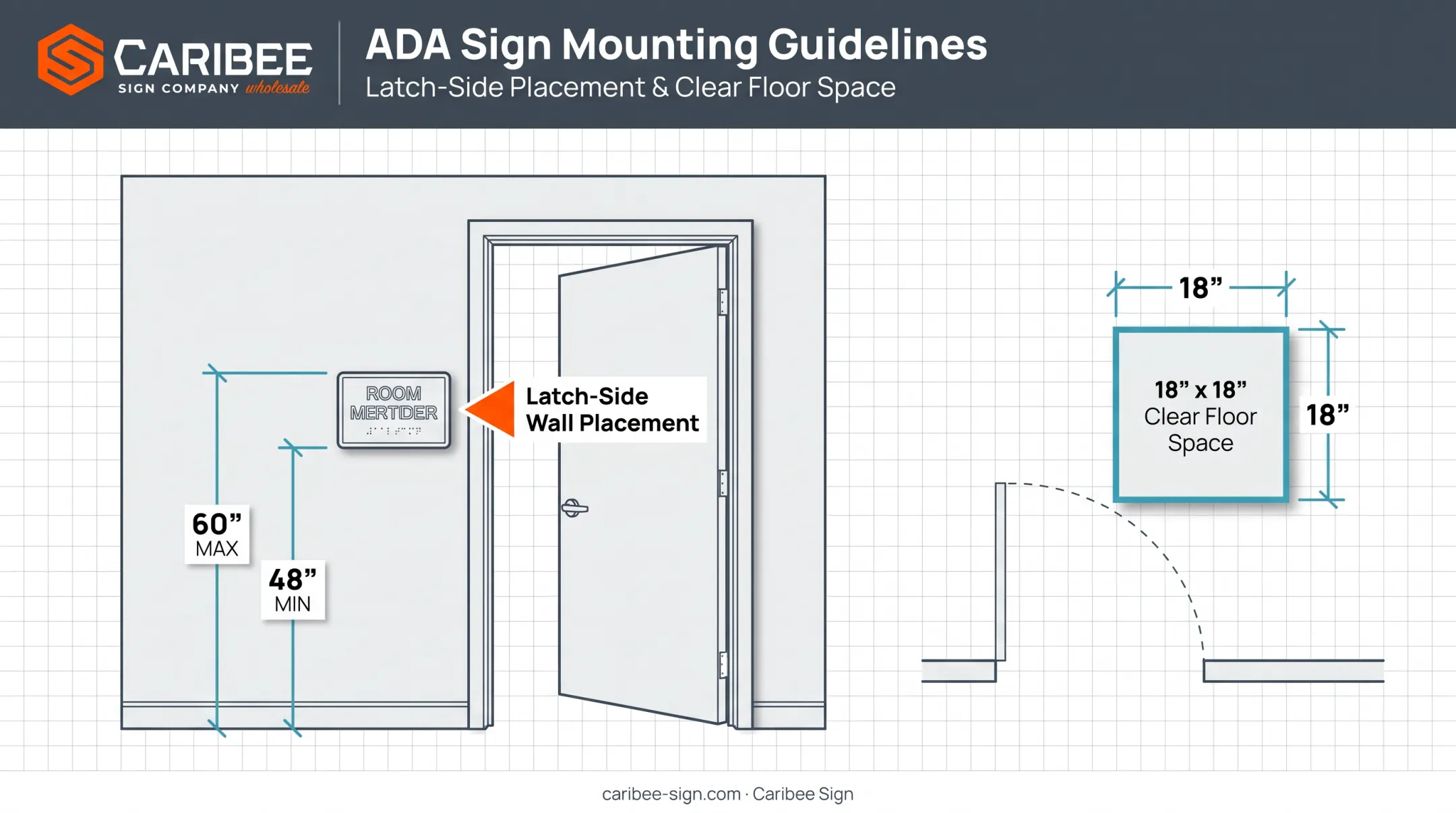

Mounting Height and Placement
- Baseline height: 48 inches minimum, 60 inches maximum from the floor
- Location: latch side of the door at single-door entries
- Clear floor space: 18 by 18 inches minimum, positioned beyond the door swing arc
Some states and municipalities layer on additional requirements beyond the federal minimum. Always verify local code with a building authority or an experienced sign manufacturer before finalizing specs.

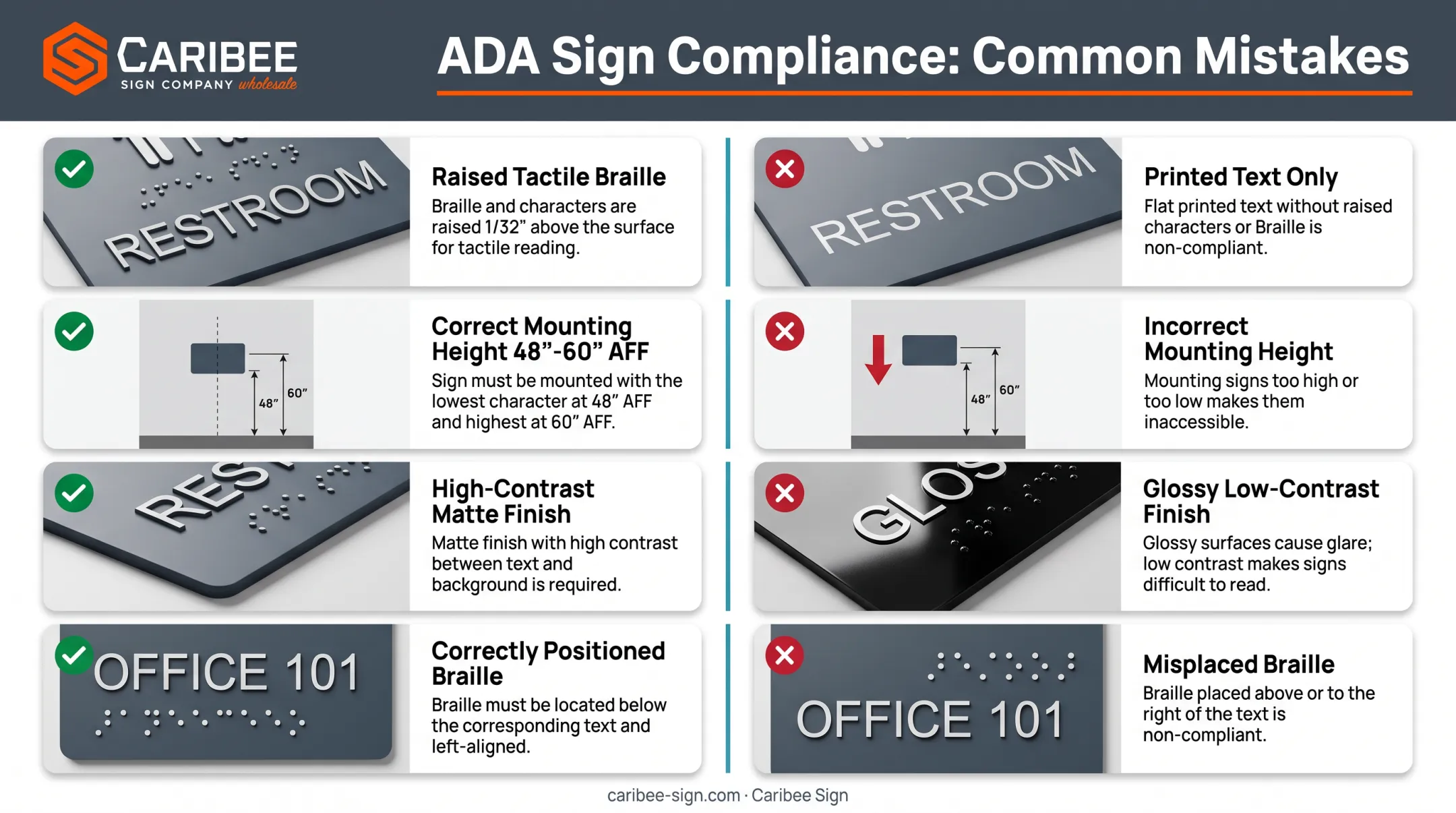

Common ADA Compliance Mistakes with ACM Signage
Even well-intentioned sign shops slip up on ACM ADA signs. The most frequent violations found in field inspections include:
- Printed or vinyl Braille and tactile text instead of properly raised, durable elements: fails code outright, regardless of appearance
- Wrong mounting height or placement near door swings, a few inches outside the 48"–60" window or on the wrong side of the door
- Poor contrast or glossy finishes that create glare and reduce legibility for low-vision users
- Braille positioned incorrectly: beside the text rather than below it, or missing the required 3/8-inch separation from tactile characters
Any one of these issues can trigger a citation during inspection or become the basis of an accessibility complaint. Getting manufacturing right up front costs far less than correcting installed signs later.
Benefits of ADA-Compliant ACM Signage
Reduced Legal Risk
Federal ADA Title III lawsuit filings reached 8,667 in 2025, a slight decline from the prior year, according to Seyfarth Shaw's ADA Title III tracking. Beyond litigation, DOJ civil penalties for ADA violations can reach $118,225 for a first violation and $236,451 for subsequent violations under 2025 inflation adjustments. Improper Braille signage is a documented litigation risk factor.
Real Accessibility Gains
Compliant signage isn't just about avoiding penalties. It means visually impaired visitors can navigate a building independently, find restrooms, and identify rooms without asking for help. That independence is a real customer-experience gain for visitors who are easy to overlook in design decisions.
Branding Without Compromise
ACM's finish versatility means businesses don't have to choose between compliance and a polished look. Custom colors, two-tone combinations, brushed metal, and matte finishes are all achievable while still meeting contrast and non-glare requirements.
Reputation Protection
Accessible signage signals that a business takes inclusivity seriously. That matters to customers, employees, and inspectors alike.
For sign companies ordering on behalf of clients, the supplier matters as much as the spec. A specialist ADA fabricator such as Caribee Sign builds compliance into production, so partners spend less time rechecking Braille, tactile characters, and contrast after the fact.
How to Source Reliable ADA-Compliant ACM Signage
Not every sign fabricator understands the nuances of Section 703. When vetting a manufacturing partner, look for:
- Proven ADA expertise: not just familiarity with the rules, but a track record of producing compliant signs at scale
- Consistent quality control across raised depth, Braille dot specs, and finish
- Responsive service for quote turnaround and production timelines

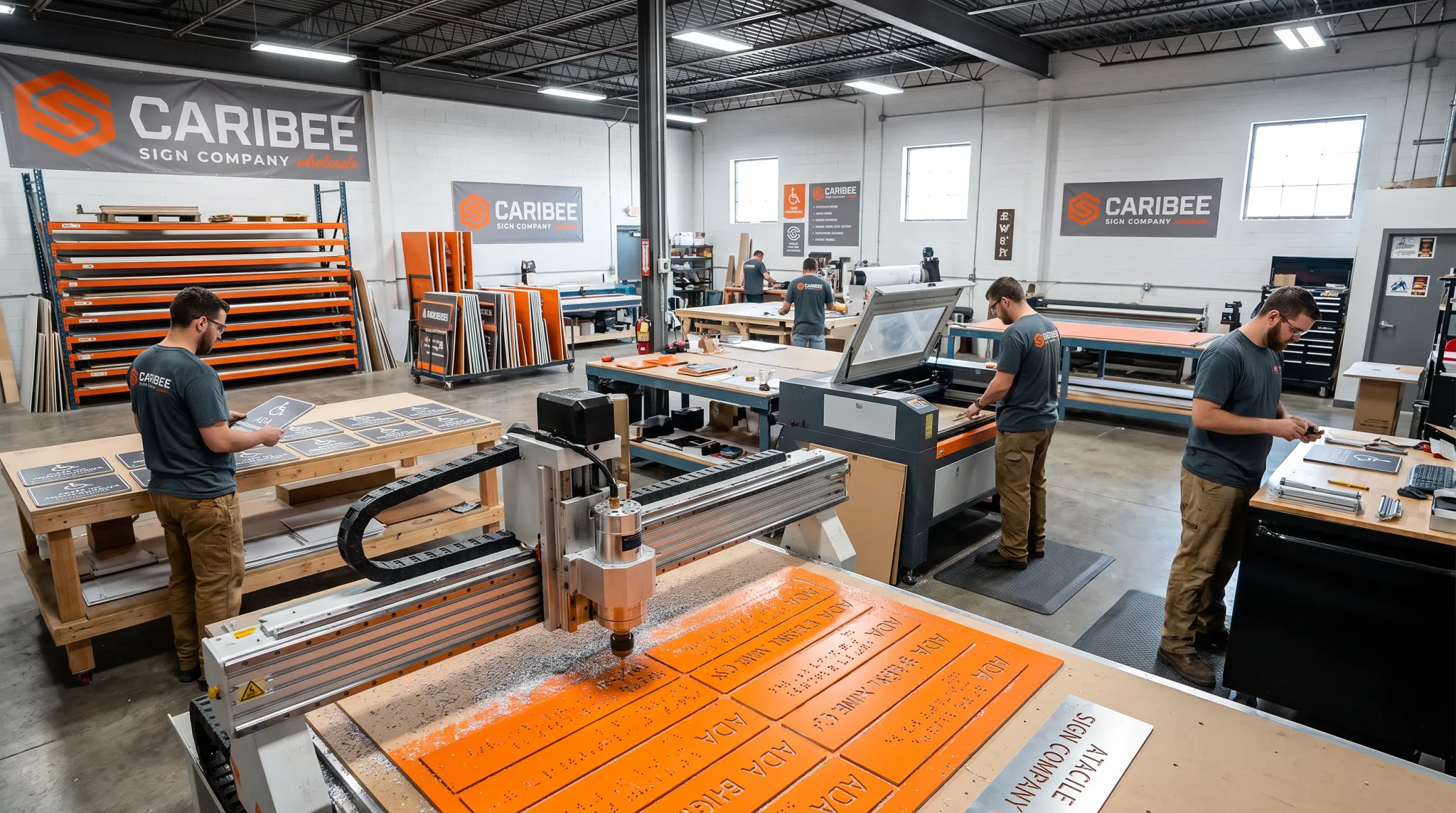

A partner that meets those standards reduces compliance risk on larger rollouts. Caribee Sign has manufactured 1,000+ custom ADA signs from its St. Louis, Missouri facility, supported by a team with over 100 years of combined experience.
Trade partners also get practical support that keeps jobs moving:
- Downloadable ADA Compliance Guidelines
- In-house Braille translation, so you don't need a separate Braille vendor
- Quotes within one business day
- Standard production in 2-3 weeks after deposit and artwork approval
Before placing a large order with any manufacturer, request compliance documentation or sign specifications. A reliable partner should confirm exactly how their signs meet raised-character depth, Braille spacing, and contrast requirements before you commit to volume.
Frequently Asked Questions
What are the requirements for ADA signs?
ADA signs need raised tactile characters (minimum 1/32" depth), Grade 2 Braille below the text, sans-serif uppercase lettering, non-glare finish with strong contrast, and mounting between 48"-60" from the floor to the baseline.
Where can I find custom ADA-compliant signs?
Specialized wholesale manufacturers like Caribee Sign produce custom ADA-compliant ACM signage for sign companies and businesses nationwide.
What does ACM stand for in signage?
ACM stands for Aluminum Composite Material — two aluminum sheets bonded to a polyethylene core. It's valued in signage for being lightweight, durable, and easy to fabricate with tactile elements.
How high should ADA signs be mounted?
Tactile character baselines must sit between 48 inches minimum and 60 inches maximum from the finished floor. Some state or local codes may add additional requirements, so check local authorities.
Do ADA signs need Braille on all signage?
Braille is required on signs identifying permanent rooms and spaces, such as restrooms and room numbers. Temporary signs lasting seven days or less, and many directional signs, fall under different rules.
What happens if a business doesn't have ADA-compliant signage?
Businesses risk DOJ civil penalties up to $118,225 for a first violation, customer lawsuits, and accessibility complaints. Federal ADA Title III filings reached 8,800 in 2024 alone.
