Introduction
An inspector walks a construction site three weeks before occupancy. He stops at the exit stairwell, checks the landing door, and flags it: no floor-level identification signage. The project stalls.
This happens more often than most contractors expect. Floor-level tactile signs, commonly called handrail braille signs in the sign trade, are one of the most frequently missed items in stairwell compliance. They're easy to overlook because they're small, and they're easy to confuse with standard ADA room signs.
They're not the same thing. These signs serve a specific life-safety function inside enclosed exit stairways, and the code language governing them is precise about placement, size, and Braille formatting.
This article breaks down what these signs are, why code requires them, and the exact design specs involved. You'll also learn the mistakes that trigger inspection failures and how sign companies can source compliant products without guesswork.
Key Takeaways
- Stairway landings require floor-ID tactile signs under IBC 1023.9 and ICC A117.1 504.10
- Signs must combine raised tactile characters and Grade 2 Braille — never just one
- Mounting height follows a 48–60 inch baseline range per federal accessibility guidelines
- Missing or incorrectly specified signs are a common cause of failed final inspections
- Sourcing from a manufacturer that specializes in ADA signage reduces rework and delay risk
What Are Handrail Braille Signs?
In the sign industry, "handrail braille sign" has become shorthand for the small tactile floor-identification plate installed inside enclosed exit stairwells. However, the model code doesn't actually require this sign to be mounted on the handrail itself.
IBC Section 1023.9 requires the tactile floor-ID sign at each floor-level landing, positioned adjacent to the door leading from the stairway into the corridor. In practice, that spot often sits right next to where the handrail extension terminates near the door, which is likely how the "handrail" naming stuck in trade conversation.
What the Sign Actually Does
The sign lets a visually impaired occupant confirm their floor level by touch. That matters most during an emergency, when someone may be moving through a stairwell without relying on visual cues at all.
A compliant floor-ID sign typically includes:
- A raised tactile floor number (for example, "4")
- Grade 2 Braille translation positioned below the number
- Directional information where required by the larger stairway identification sign
- A "NO ROOF ACCESS" indication, when applicable, as part of the stairway's broader signage set
Where It Applies
These signs show up at each enclosed interior exit stairway or ramp connecting more than three stories, in commercial, institutional, and multi-story residential buildings. That threshold comes straight from the code language, not from a building's occupancy classification alone.
Why Handrail Braille Signs Are Required by Code
The regulatory logic here is straightforward: signage that only works visually fails a portion of the building's occupants every single time. Tactile and Braille floor identification closes that gap.

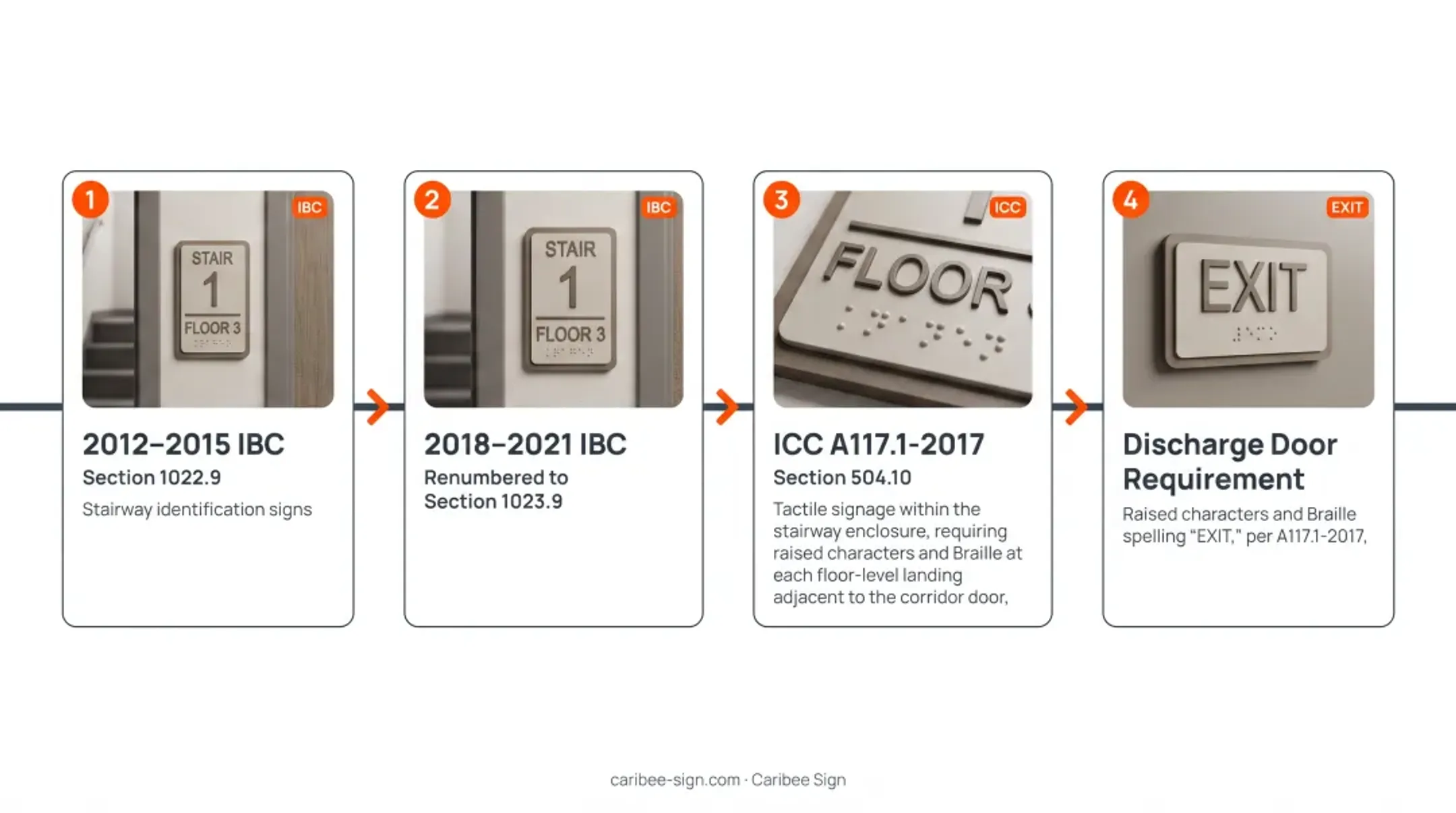

The Code Basis
The requirement traces back through several code cycles:
- 2012–2015 IBC: Section 1022.9, "Stairway identification signs"
- 2018–2021 IBC: Renumbered to Section 1023.9
- ICC A117.1-2017, Section 504.10: "Tactile signage within the stairway enclosure," requiring raised characters and Braille at each floor-level landing adjacent to the corridor door
The discharge door at the bottom of the stairway carries its own requirement too — raised characters and Braille spelling "EXIT," per A117.1-2017.
Who Enforces It
Building officials and fire marshals check for these signs at two points: plan review and final inspection. The U.S. Access Board's guidance on accessible means of egress confirms that tactile identification at stairway and exit-discharge doors is a mandatory accessible egress requirement, not a discretionary finish detail.
When it's missing, the consequences are predictable:
- Failed final inspection
- Delayed certificate of occupancy
- Rework costs on signage that should have shipped correctly the first time
- Potential liability exposure for the building owner or GC
Which Buildings Trigger the Requirement
Under 2021 IBC Section 1019.3, most occupancies must enclose exit-access stairs connecting more than two stories, with specific exceptions for certain R-occupancy configurations and sprinklered atriums. Once a stairway is enclosed and connects more than three stories, Section 1023.9 signage kicks in. Groups I-2 and I-3 (hospitals and jails) follow separate provisions entirely.
Design & Placement Requirements for Compliance
This is where projects tend to fail inspection. The specs aren't complicated, but they're exact, and there's very little tolerance for approximation.
Tactile Character Specs
Per the Access Board's technical guidance on signs:
- Character height: 5/8 inch minimum to 2 inches maximum
- Raised relief: 1/32 inch minimum
- Style: uppercase, sans serif (no italics, script, or decorative fonts)
- Stroke width: maximum 15% of the uppercase "I" height
Braille Specs
Braille must be Grade 2 (contracted), positioned below the corresponding raised characters:
- Dot base diameter: 0.059–0.063 inch
- Dot spacing within a cell: 0.090–0.100 inch
- Spacing between cells: 0.241–0.300 inch
- Dot height: 0.025–0.037 inch
- Separation from other tactile elements: minimum 3/8 inch

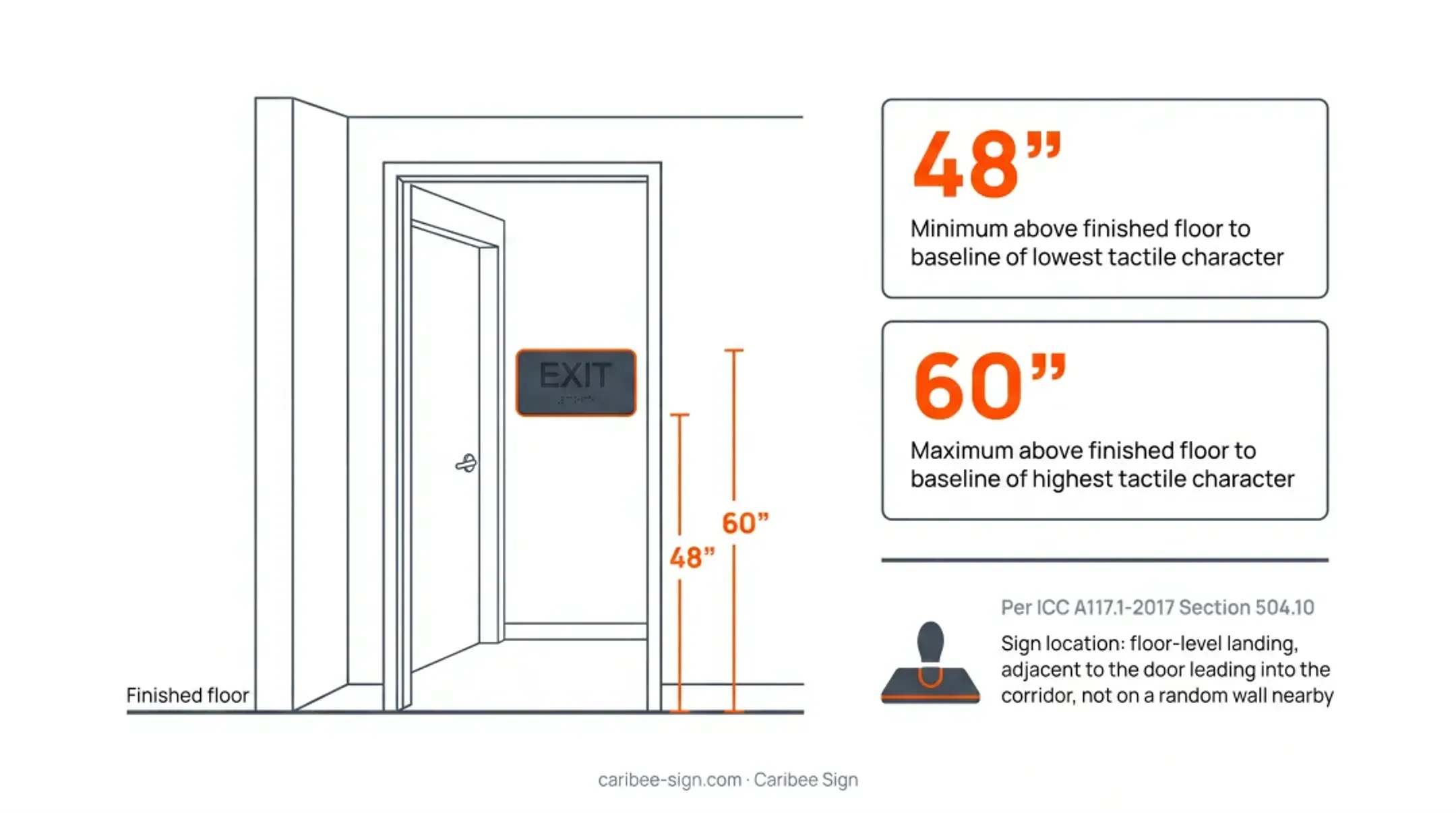

Mounting Height and Placement
The baseline of the lowest tactile character must sit 48 inches minimum above the finished floor, with the highest character baseline at 60 inches maximum. Per ICC A117.1-2017 Section 504.10, the sign belongs at the floor-level landing, adjacent to the door leading into the corridor, not on a random wall nearby.
Finish and Contrast
Signs need a non-glare finish, with characters contrasting against the background as either light-on-dark or dark-on-light. Neither the ADA Standards nor A117.1 specify an exact contrast percentage, but weak contrast is a common reason signs get flagged during inspection anyway.
One caveat worth repeating: exact figures shift slightly between code editions, and local amendments can tighten requirements further. Always verify against whatever edition of IBC and ICC A117.1 the jurisdiction has adopted before finalizing artwork.
Tactile Signs vs. Braille Signs: Clearing Up the Confusion
These two terms get used interchangeably, and that's where mistakes creep in.
| Term | Definition | Examples |
|---|---|---|
| Tactile | Broad category: any raised element read by touch | Letters, numbers, arrows, pictograms (like a restroom symbol) |
| Braille | One specific type of tactile element: the dot-based code system for letters and numbers | Grade 2 Braille translations |
For code-compliant stairwell signage, both must appear together:
- Restroom pictogram signs can rely on tactile symbols alone.
- Floor-ID tabs cannot: they need the raised number and the Grade 2 Braille translation beneath it, every time.
Common Compliance Mistakes to Avoid
Most inspection failures on this sign type trace back to a handful of repeat issues:
- Incorrect Braille formatting: wrong grade, flat or sharp dots instead of domed ones, or spacing outside tolerance
- Wrong mounting height: measuring to the sign panel edge instead of the tactile character baseline
- Missing directional or roof-access information on the larger stairway ID sign that accompanies the floor tab
- Substituting a generic interior sign for the code-specific stairwell floor-ID sign, assuming any ADA-style plate will satisfy the requirement
That last one comes up more than it should. A standard room ID sign and a stairway floor-ID sign look similar at a glance, but they answer to different code sections with different placement and content rules.

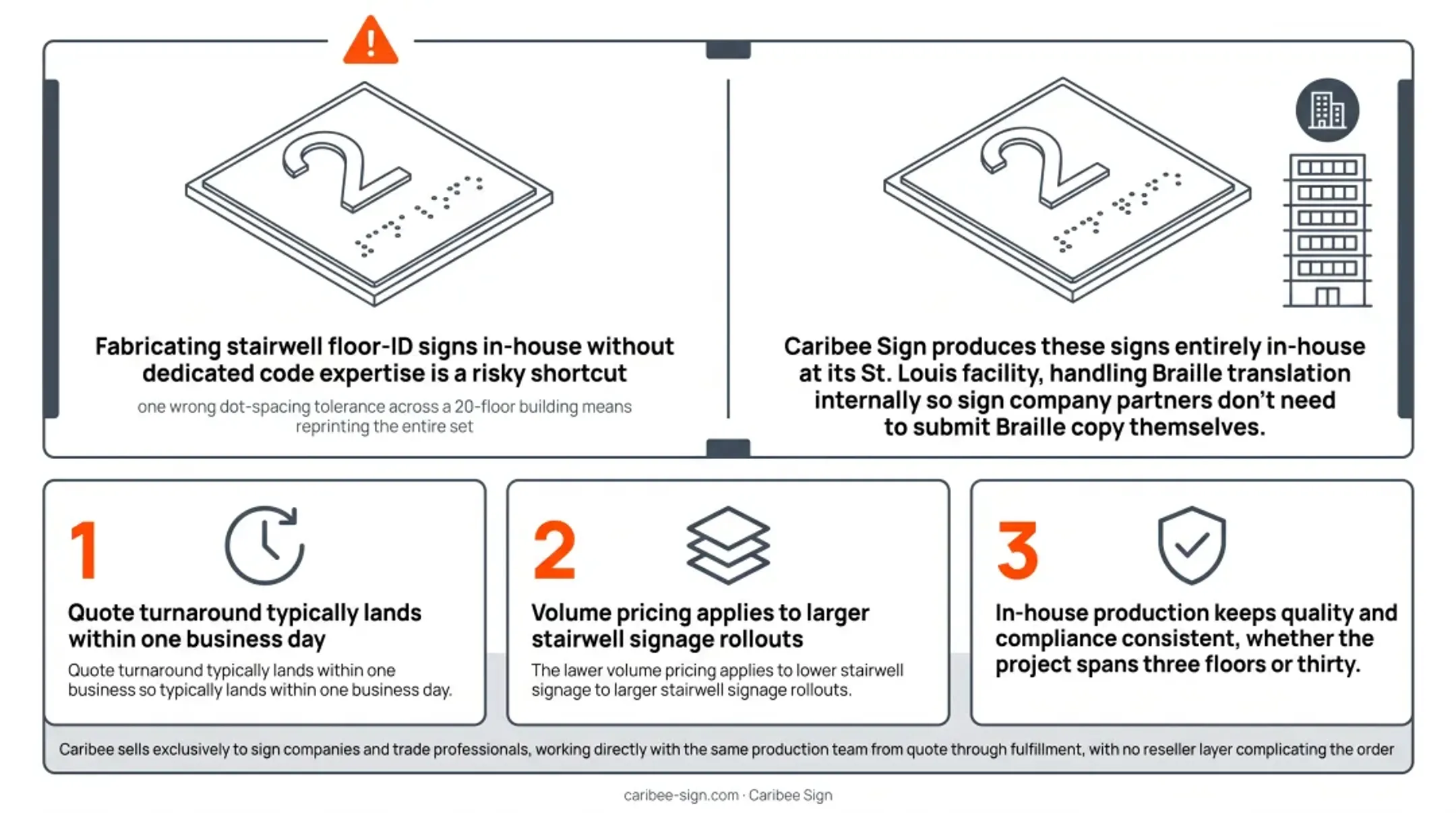

Partnering with a Reliable Manufacturer for Handrail Braille Signs
Fabricating stairwell floor-ID signs in-house without dedicated code expertise is a risky shortcut: one wrong dot-spacing tolerance across a 20-floor building means reprinting the entire set.
Working with a manufacturer that specializes in ADA-compliant signage removes most of that risk. Caribee Sign produces these signs entirely in-house at its St. Louis facility, handling Braille translation internally so sign company partners don't need to submit Braille copy themselves.
For sign companies managing multi-building or multi-floor stairwell projects, that matters in a few concrete ways:
- Quote turnaround typically lands within one business day
- Volume pricing applies to larger stairwell signage rollouts
- In-house production keeps quality and compliance consistent, whether the project spans three floors or thirty
Since Caribee sells exclusively to sign companies and trade professionals, wholesale partners work directly with the same production team from quote through fulfillment, with no reseller layer complicating the order.
Frequently Asked Questions
What are the rules for Braille signs?
Braille signs must use contracted Grade 2 Braille, positioned below the corresponding raised characters, with dot spacing and height meeting federal accessibility standards.
What is the difference between a tactile sign and a Braille sign?
Tactile is the broader category covering any raised, touch-readable element, including letters, numbers, and pictograms. Braille is a specific dot-based code, and code-compliant signs generally require both together, not one alone.
What is the Braille plate on a handrail?
It's the small tactile and Braille tab commonly installed near a stairwell landing to identify the floor level. Despite the "handrail" name in trade use, code places it adjacent to the door leading into the corridor.
Where are handrail braille signs required by code?
They're required at each floor-level landing within enclosed interior exit stairways connecting more than three stories, per IBC Section 1023.9. Group I-2 and I-3 occupancies follow separate provisions.
How high should a handrail braille sign be mounted?
Federal guidance sets the tactile character baseline between 48 inches minimum and 60 inches maximum above the finished floor. Always confirm against the locally adopted IBC and ICC A117.1 edition before installation.
What are the rules for handrails in the UK?
If your projects extend to UK sites, note that requirements fall under Approved Document M and BS 8300-2, not U.S. ADA or IBC codes. These documents address accessible stairs and signage but don't mirror the specific handrail-mounted floor-ID sign rules used domestically.
