This scenario plays out daily in downtowns, park districts, and master-planned communities across the country. Community wayfinding signage solves it by guiding people across multiple destinations within a defined area, not just through a single building or campus.
This guide covers what makes a community wayfinding system, the sign types involved, federal design standards, ADA accessibility requirements, and what these projects typically cost.
Key Takeaways
- Community wayfinding guides drivers and pedestrians to multiple destinations under one municipal-wide system
- MUTCD Section 2D.55 limits vehicular guide signs to three destinations and bans them on freeways
- Pedestrian-facing kiosks and directories must meet ADA standards independently of vehicular sign rules
- Costs scale with sign type, materials, and quantity; full municipal rollouts often reach six figures
What Is Community Wayfinding Signage?
Community wayfinding signage is a coordinated, continuous system of signs that directs tourists, residents, and other road users to civic, cultural, recreational, and visitor destinations across a city, downtown, or defined district. MUTCD Section 2D.55 governs the system federally, treating these as destination guide signs for conventional roads under a shared color scheme or identification marker.
This jurisdiction-wide scope marks the key distinction from single-site wayfinding. A hospital campus or university guides people to buildings within its own property line. Community wayfinding operates across an entire jurisdiction, coordinating dozens or hundreds of signs across streets, sidewalks, and public spaces that no single property owner controls.

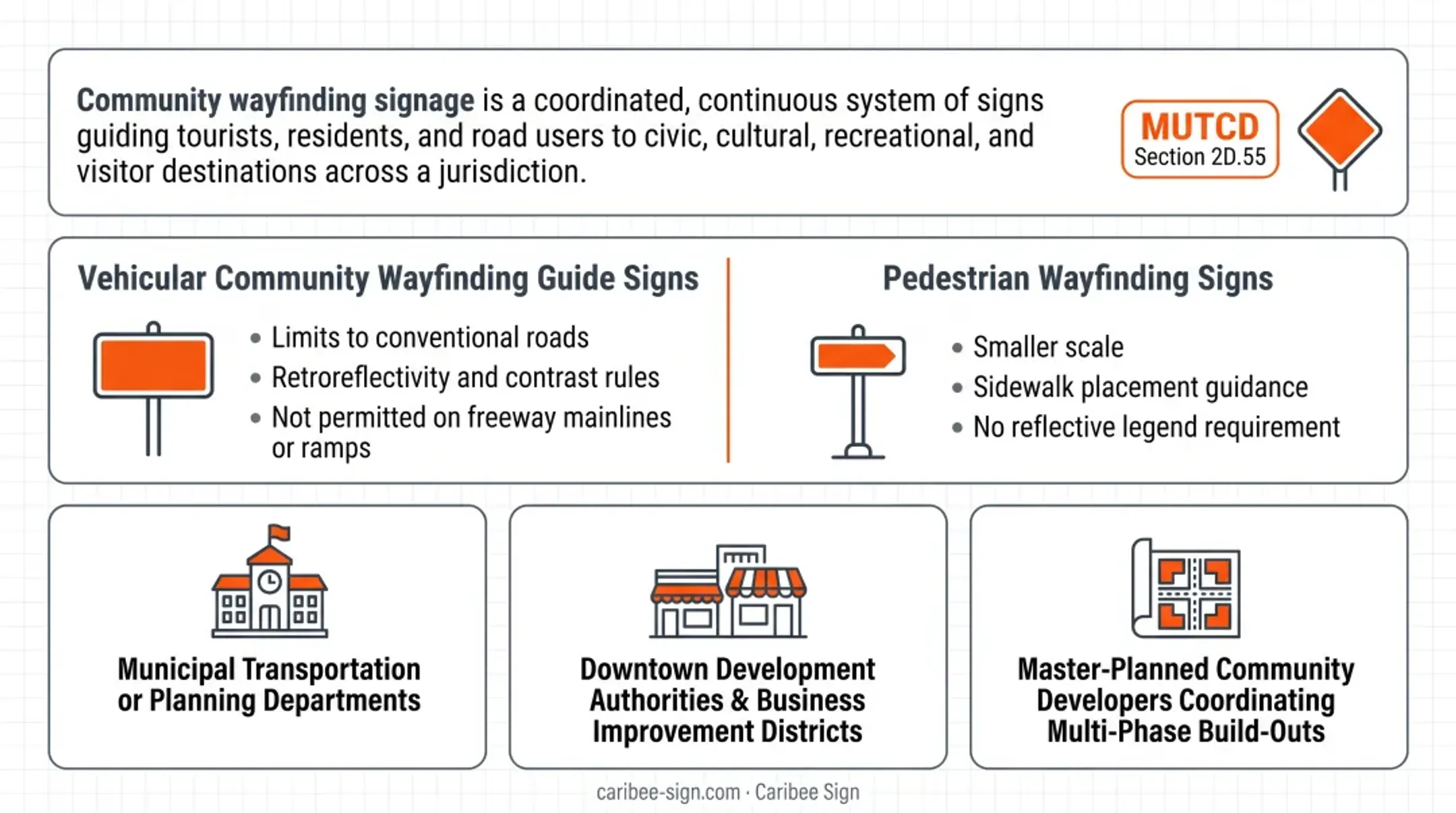

Federal guidance recognizes two primary categories:
- Vehicular community wayfinding guide signs — limited to conventional roads, following specific rules on retroreflectivity, contrast, and destination limits. MUTCD bars them from freeway mainlines and ramps.
- Pedestrian wayfinding signs — smaller, sidewalk-oriented signage that follows separate placement guidance without meeting the reflective or legend standards required for vehicular signs.
The core objective is simple: help people find where they're going without guesswork. That reduces confusion-driven traffic conflicts and keeps visitors moving toward local businesses instead of circling the block.
Achieving that goal takes deliberate coordination. The following organizations typically plan and commission these systems:
- Municipal transportation or planning departments
- Downtown development authorities and business improvement districts
- Master-planned community developers coordinating multi-phase build-outs
Types of Community Wayfinding Signage
Directional and Destination Guide Signs
These combine arrows with destination names, pointing users toward attractions, parking, and civic buildings. MUTCD guidance recommends limiting each sign to three destinations maximum to keep them legible at a glance, particularly for drivers who only have a few seconds to read and react.
Identification Markers and Boundary Informational Signs
Identification markers give a wayfinding system its visual identity, a consistent icon or badge that tells users "you're now in this system." Boundary informational signs, often built on a green background per federal general information sign conventions, mark where a wayfinding zone begins and explain how the coding system works.
Color-Coded Wayfinding Systems
Color-coding helps users distinguish subareas within a larger district, a blue palette for the historic quarter versus a green palette for the civic center, for example.
There's a hard restriction here worth flagging: red, orange, yellow, and purple (including their fluorescent variants) are off-limits for wayfinding backgrounds because these hues are reserved for regulatory and warning signs. Mixing them into a wayfinding palette creates dangerous ambiguity for drivers and pedestrians alike.
Pedestrian vs. Vehicular Wayfinding Signage
Vehicular signs face stricter rules than their pedestrian counterparts, largely because drivers have far less time to process information. The table below breaks down the key differences:
| Requirement | Vehicular Signs | Pedestrian Signs |
|---|---|---|
| Retroreflectivity | Mandatory | Not required |
| Placement | Elevated, within driver sightline | Closer to sidewalks, out of driver sightline |
| Letter height | Larger, readable at speed | Smaller, read at close range |
They're built for someone standing still, not someone doing 30 mph past an intersection.
Design Principles for Effective Community Wayfinding
Clarity, Consistency, and Legibility
Simple language and universal pictographs matter more than clever branding. A pictograph should never dominate the sign, either: MUTCD guidance caps pictograph height at no more than twice the uppercase letter height of the main legend.
Consistent lettering across every sign in the system builds the visual pattern-recognition that makes wayfinding work.
Strategic Placement at Decision Points
Signs belong at intersections, entry points, and anywhere a person has to choose a direction. Two rules matter here:
- Community wayfinding signs cannot obscure other traffic control devices
- They cannot be mounted overhead
Good placement targets the exact moment someone needs to decide left or right, not blanket visibility across the whole space.
Meeting Regulatory Design Standards
The Manual on Uniform Traffic Control Devices (MUTCD) sets firm technical benchmarks for community wayfinding signs. Caribee Sign builds every custom sign to meet these codes:
| Requirement | Standard |
|---|---|
| Legend/background contrast | Minimum contrast value of 0.70 (70%) |
| Retroreflectivity | Required on all vehicular sign elements |
| Sign shape | Rectangular (identification markers excluded) |
| Overhead mounting | Not permitted |
Integrating Landmarks and Orientation Tools
Maps, "you are here" markers, and identification badges act as anchors. They give people a reference point, which builds confidence, especially in districts with multiple overlapping destinations where a single arrow sign isn't enough context.

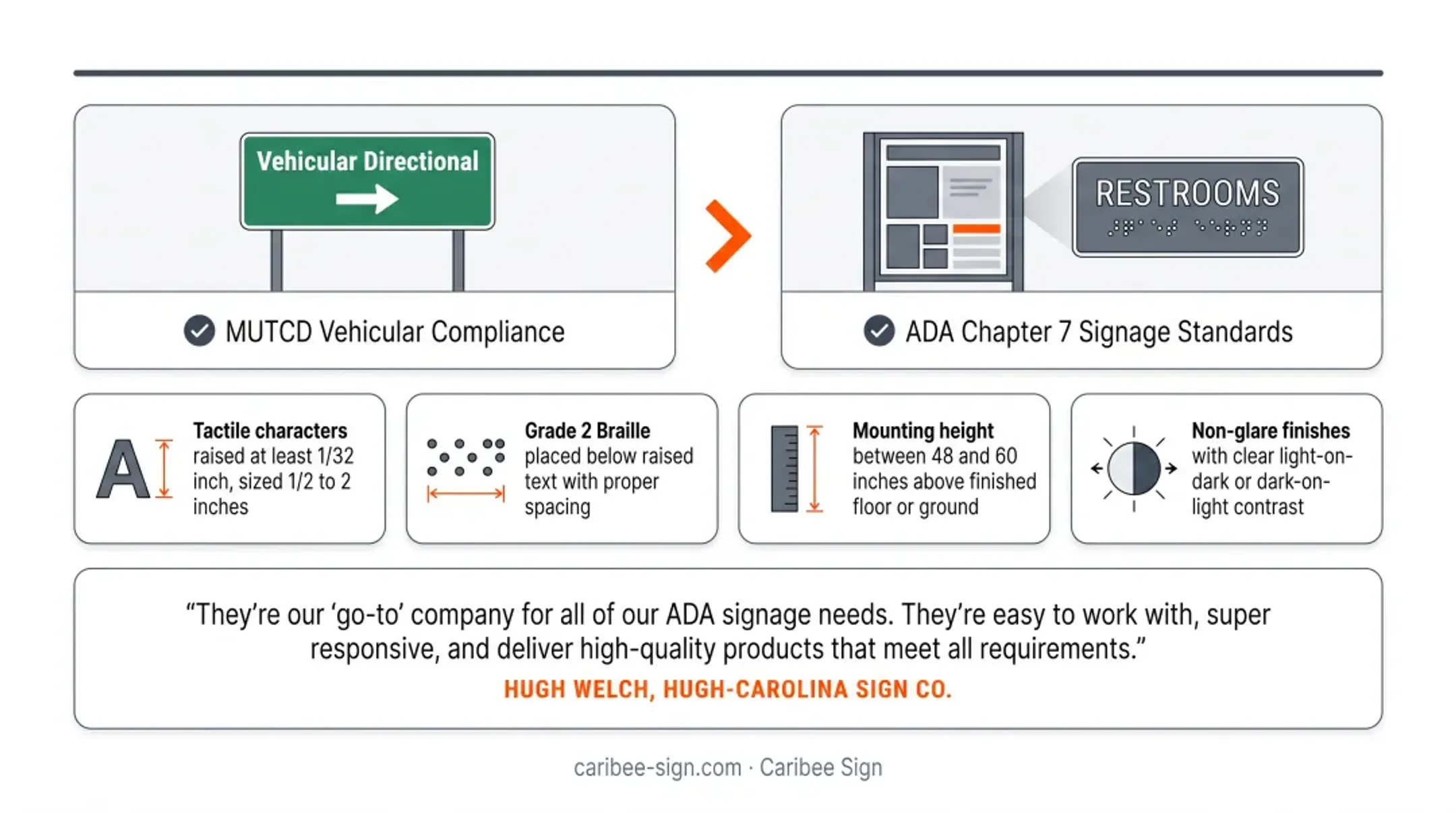

ADA Compliance in Community Wayfinding Signage
Vehicular sign rules under the MUTCD are only half the picture. Pedestrian-facing identification signs, directories, and kiosks within a community wayfinding system must independently meet ADA accessibility standards, separate from any traffic regulation.
Under ADA Chapter 7 signage standards, that typically means:
- Tactile characters raised at least 1/32 inch, sized between 1/2 and 2 inches
- Grade 2 Braille placed below raised text with proper spacing
- Mounting height between 48 and 60 inches above the finished floor or ground
- Non-glare finishes with clear light-on-dark or dark-on-light contrast
Municipalities and developers frequently overlook these requirements on pedestrian kiosks and district directories, assuming vehicular sign compliance covers everything. It doesn't. A directory sign that's perfectly legal under traffic guidance can still be non-compliant under ADA if it lacks proper tactile elements or sits at the wrong mounting height.
This is exactly where sign companies handling municipal wayfinding contracts lean on a manufacturing partner that builds ADA compliance into every project from the start. Caribee Sign produces tactile, Braille, and directional signage components used by sign companies across the country for exactly this kind of work.
Hugh Welch of Hugh-Carolina Sign Co. put it plainly:
"They're our 'go-to' company for all of our ADA signage needs. They're easy to work with, super responsive, and deliver high-quality products that meet all requirements."
For a district-wide rollout involving hundreds of signs, that kind of consistency matters. Every kiosk, directory, and identification marker needs to meet the same Braille grade, tactile depth, and contrast standard, without slowing down delivery on a project that's already running on a municipal timeline.
Benefits of Community Wayfinding Signage
Economic activity. Visitors who can find parking, attractions, and businesses without frustration are far more likely to actually visit them. Downtown associations and business improvement districts routinely cite wayfinding as one of the lower-cost interventions available. It keeps foot traffic moving toward local retail instead of dead-ending at the first visible option.
Fewer traffic conflicts. That same clarity extends beyond storefronts and onto the streets. Drivers who know where they're going make fewer last-minute lane changes and abrupt turns. That directly reduces the kind of intersection conflicts that happen when someone realizes too late they've missed their exit or turn.
Civic identity and branding. Beyond commerce and safety, a consistent, well-designed wayfinding system does double duty:
- Reinforces a sense of place for residents
- Signals investment and cohesion to visitors
- Gives master-planned communities and downtown revitalization efforts a unifying visual identity across every phase of development
Cost Factors for Community Wayfinding Signage Projects
Costs vary widely based on sign type, materials, and total quantity. A recent Downtown Albany BID wayfinding program illustrates the range:
| Sign type | Fabrication + install (each) |
|---|---|
| Vehicular guide sign, 6-inch letters | $11,300 |
| Vehicular guide sign, 4-inch letters | $9,300 |
| Parking trailblazer | $7,500 |
| Pedestrian kiosk | $8,500 |
That project's full rollout, including design, engineering, and contingency, totaled over $726,000 for a mid-sized downtown system. Smaller districts will spend less; larger multi-jurisdictional systems will spend more.
Beyond fabrication, budget for:
- Design and engineering fees covering the full system, not individual signs
- Local DOT permitting, which varies by jurisdiction
- Professional installation, especially for post-mounted and large-format signs
- ADA-compliant tactile elements, which need to be specified correctly the first time
That last point is where a lot of municipal budgets take an unplanned hit. Retrofitting non-compliant signage after installation costs far more than specifying it correctly upfront.
Working with an ADA-focused manufacturer for the tactile and Braille components helps sign companies avoid that rework. It also keeps quality consistent across a large-scale rollout, whether it's 50 signs or 500.
Frequently Asked Questions
What are wayfinding signs?
Wayfinding signs are directional, identification, and informational signage that help people navigate a physical space toward specific destinations. In a community setting, that includes arrow-based guide signs, district markers, and pedestrian directories.
How much does wayfinding signage cost?
Costs depend on sign type, materials, and total system size, ranging from a few thousand dollars per sign to well over $700,000 for a full municipal rollout. Larger sign counts and illuminated or monument-style signs push costs higher.
Are wayfinding signs required to be ADA compliant?
Pedestrian-facing identification and informational signs must meet ADA standards, including tactile characters and Braille where applicable. Vehicular guide signs follow separate traffic control regulations instead.
Who is responsible for installing community wayfinding signage?
Municipalities, developers, or business improvement districts typically manage installation, usually partnering with sign companies and ADA-compliant signage manufacturers who supply the components.
What's the difference between wayfinding and directional signage?
Directional signage, arrows paired with destination names, is one component within the broader wayfinding system. Wayfinding also includes identification markers, boundary signs, and informational directories.
How do color-coded wayfinding systems work?
Wayfinding systems assign distinct colors to different neighborhoods or subareas within a district, helping users quickly recognize which zone they're in. Designers avoid red, orange, and yellow since regulatory signage reserves those colors.
