The laser marking equipment market (which includes engraving) hit $2.9 billion in 2022 and is projected to reach $4.1 billion by 2027, growing at a 7.2% CAGR. That growth reflects how many industries now depend on this technology.
But here's the problem: most buyers understand what laser engraving does without understanding how it does it. That gap leads to wrong material choices, unrealistic depth expectations, and — for regulated signage — compliance failures. This guide walks through the actual mechanics, stage by stage.
Key Takeaways
- Laser engraving vaporizes material with a computer-guided beam, leaving a permanent physical mark
- The process moves through four stages: file prep, beam interaction, real-time regulation, and output
- CO2 lasers handle wood, acrylic, and glass; fiber lasers are built for bare metal
- For ADA signage, engraving depth and contrast directly determine regulatory compliance
What Is Laser Engraving?

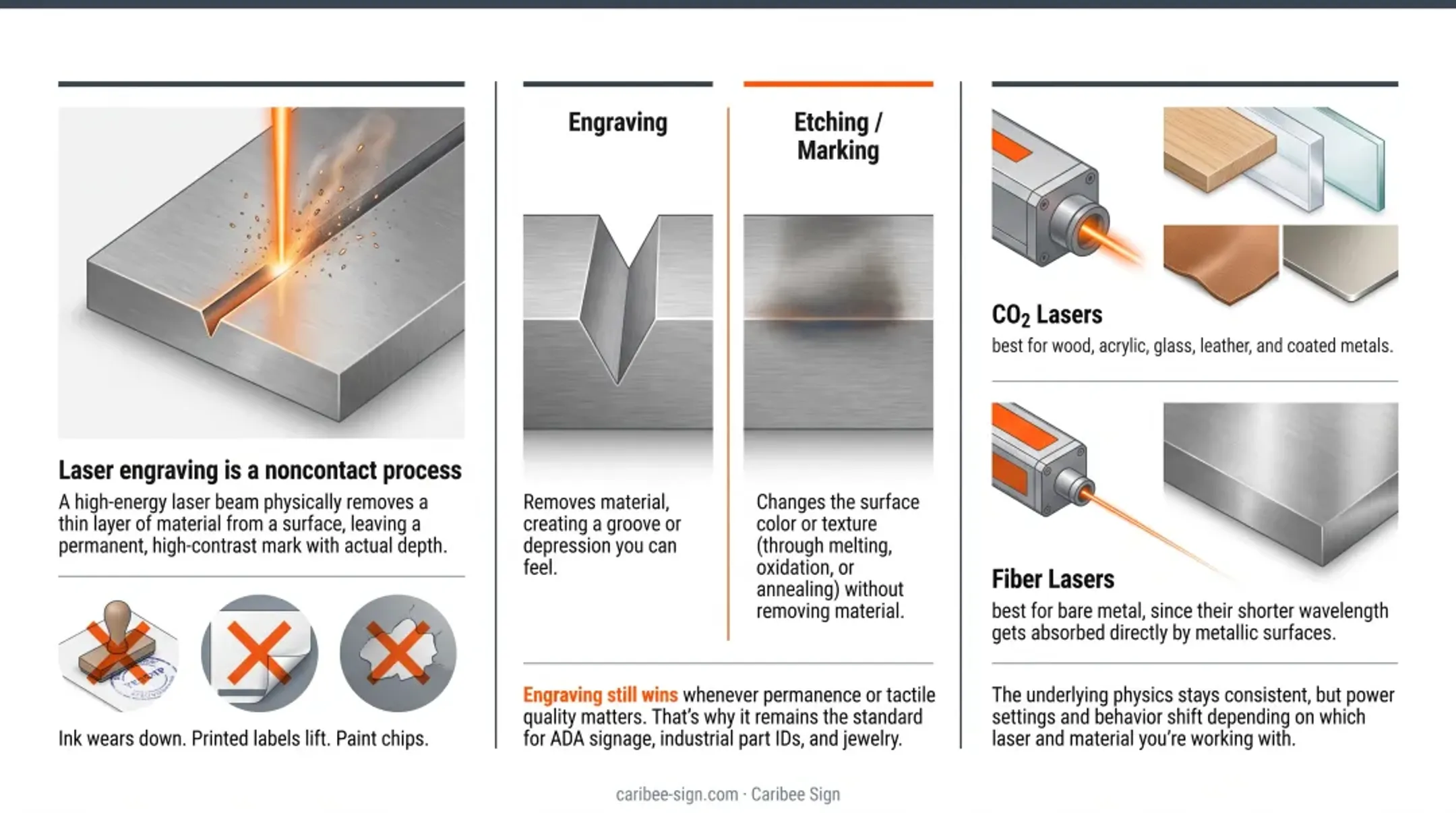

Laser engraving is a noncontact process. A high-energy laser beam physically removes a thin layer of material from a surface, leaving a permanent, high-contrast mark with actual depth.
It exists to solve a specific problem: markings that fade, peel, or scratch off. Ink wears down. Printed labels lift. Paint chips. Laser engraving cuts into the material itself, so there's nothing to wear away.
This is different from laser etching or marking, and the two terms get mixed up constantly:
- Engraving removes material, creating a groove or depression you can feel
- Etching/marking changes the surface color or texture (through melting, oxidation, or annealing) without removing material
Despite newer options like UV printing and dye sublimation, engraving still wins whenever permanence or tactile quality matters. That's why it remains the standard for ADA signage, industrial part IDs, and jewelry.
Two laser types dominate the space, and the choice depends entirely on material:
- CO2 lasers: best for wood, acrylic, glass, leather, and coated metals
- Fiber lasers: best for bare metal, since their shorter wavelength gets absorbed directly by metallic surfaces
The underlying physics stays consistent, but power settings and behavior shift depending on which laser and material you're working with.
How Does Laser Engraving Work?
Laser engraving runs through a defined, computer-guided sequence. Each stage affects the final result, and a mistake early on shows up in the finished piece.
Initiation
Everything starts with a design file, either vector or raster, loaded into CAM software. The software translates the artwork into a precise laser path with exact X-Y coordinates and power settings.
Once programmed, initiation is fully automated. The laser doesn't need manual guidance; it follows the file instructions exactly.
The most common bottleneck happens here, not later. Poorly prepared files cause problems before the laser ever fires:
- Low-resolution images produce blurry, pixelated engravings
- Uncorrected or unconverted fonts can shift or drop out
- Incompatible file formats force software to guess at intent
Flaws in the file translate directly into flaws in the finished piece. No amount of power or speed adjustment can fix a bad file.
Core Operation
Here's the central mechanism: the focused beam heats the material's surface fast enough to vaporize or ablate it at the exact point of contact, rather than melting it. That distinction matters, since melting tends to smear the material while vaporization removes it cleanly.
The laser head moves in one of two modes:
- Vector mode: traces outlines and paths, ideal for scoring or thin-line detail
- Raster mode: scans line by line like a printer, suited to photographs and filled areas
Three variables control the outcome:
- Power (watts): higher power increases depth and thermal input
- Speed: slower travel means more energy per point, deepening the mark
- Pulse duration/frequency: shorter, denser pulses limit heat spread; longer pulses increase depth but risk warping
Trotec's own testing on stainless steel found a fast setting reached 200-240 microns deep in 112 seconds but caused up to 100 microns of warping. A quality-optimized setting hit a similar 200-220 micron depth with zero warp, but took 375 seconds. That trade-off between speed and precision runs through every engraving job.
Regulation & Control
Power, focus, and pulse timing aren't set-and-forget. They adjust continuously based on material type and surface variation. Dynamic autofocus systems handle uneven surfaces automatically, keeping the beam at the correct focal distance as it moves.
Two systems typically run in the background to keep production safe and consistent. Fume extraction pulls vaporized material away from the workpiece and machine optics, while cooling systems manage the heat CO2 lasers generate to prevent tube damage.
Skip proper calibration here and the consequences show up fast: burn-through, warping, inconsistent depth, or fume buildup that's a genuine safety hazard under OSHA's ventilation guidelines. This is also where production consistency is tested. A single well-executed engraving doesn't guarantee the same result across a production run of a thousand units; tight calibration and monitoring make that difference.
Output & Result

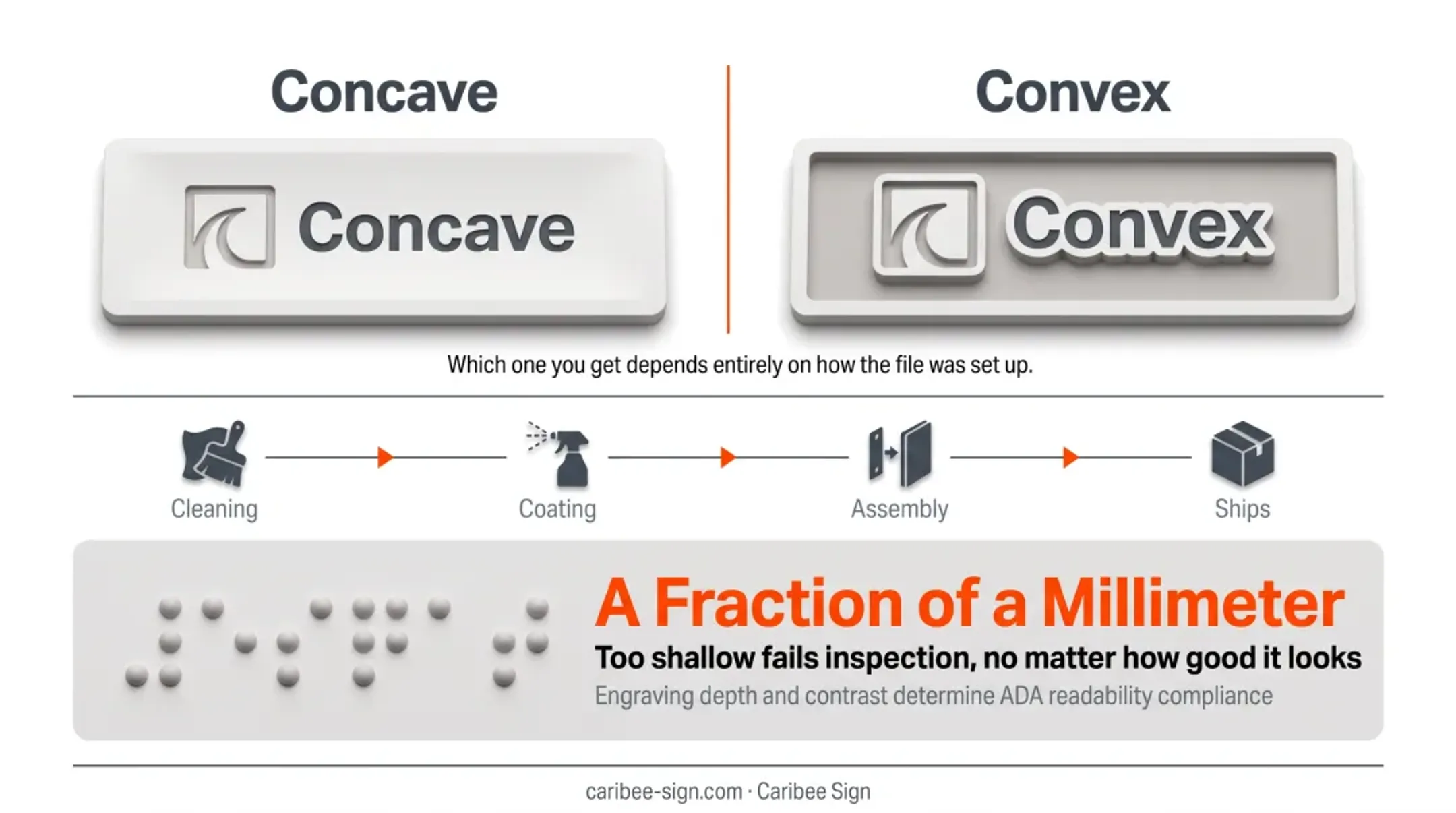

The finished mark is either concave (indented into the surface) or convex (raised, with surrounding material engraved away to leave the design standing up). Which one you get depends entirely on how the file was set up.
From here, the piece typically moves into cleaning, coating, or assembly before it ships.
Output quality affects performance, not just appearance. For tactile signage, engraving depth and contrast are what determine whether a sign actually meets readability standards. A Braille dot that's a fraction of a millimeter too shallow fails inspection, no matter how good it looks.
Where Is Laser Engraving Used?
Laser engraving fits into production workflows at several points: personalization and gifting, industrial part identification, jewelry, and durable signage manufacturing.
It performs best under specific conditions:
- Flat or gently curved surfaces
- Materials that ablate cleanly, such as wood, coated metal, acrylic, and anodized aluminum
- Applications needing high repeatability across large volumes
Signage is where the stakes get highest. ADA tactile signs require raised characters at least 1/32 inch above the background, while Braille dots must measure 0.025 to 0.037 inches in height, according to the 2010 ADA Standards for Accessible Design. Miss either tolerance and the sign fails compliance, regardless of how it looks.
This is where precision engraving does its real work. Caribee Sign produces ADA-compliant tactile and Braille signage in-house at its St. Louis, MO facility, combining laser engraving with CNC routing to hit the depth and contrast requirements sign companies and businesses depend on nationwide.
It's the kind of consistency that matters when a single project might include dozens of room ID signs that all need to pass the same inspection.
Beyond signage, the same core process shows up in:
- Automotive: VIN and chassis marking for permanent vehicle identification
- Medical devices: component labeling and traceability marking
- Fine art and custom gifts: detailed personalization work

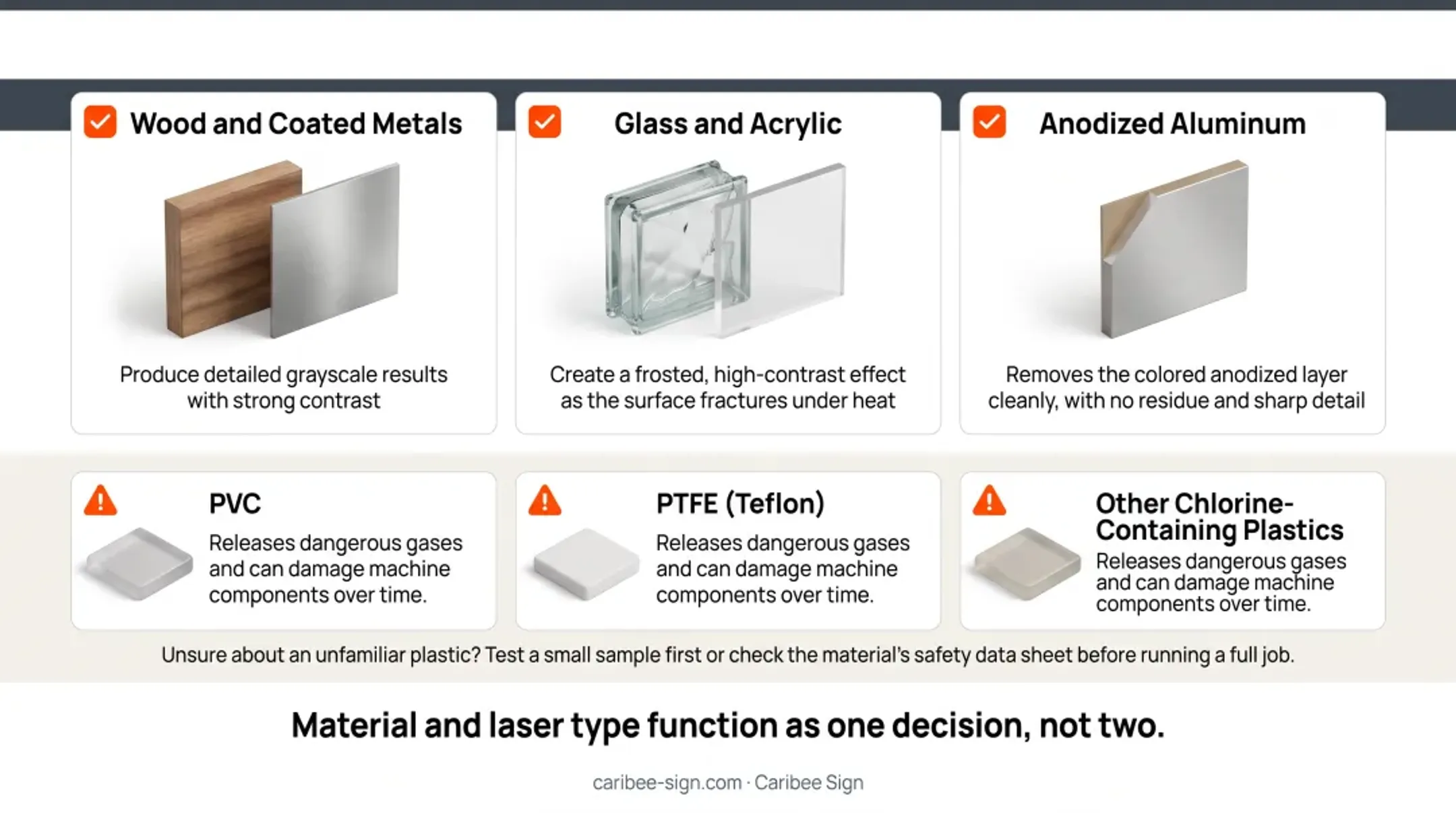

Materials Commonly Laser Engraved
Material choice determines everything downstream: which laser type to use, what power setting to run, and how the final piece will look.
Materials that engrave well:
- Wood and coated metals: produce detailed grayscale results with strong contrast
- Glass and acrylic: create a frosted, high-contrast effect as the surface fractures under heat
- Anodized aluminum: removes the colored anodized layer cleanly, with no residue and sharp detail
Materials to avoid:
PVC, PTFE (Teflon), and other chlorine-containing plastics top the list. Trotec specifically excludes these because processing them releases dangerous gases and can damage machine components over time. If you're unsure about an unfamiliar plastic, test a small sample first or check the material's safety data sheet before running a full job.
Material and laser type function as one decision, not two. Get the pairing wrong, and you risk damaging the material, the machine, or both.
Conclusion
Strip away the branding and marketing language, and laser engraving comes down to one mechanism: a programmed beam applies controlled heat to permanently remove material. Power, speed, and focus determine everything about the final result.
Understanding that logic helps with better decisions at any scale. If you're running a smaller-scale project, it means picking the right laser for your material. If you're a sign company sourcing ADA-compliant signage that has to pass inspection every single time, it means partnering with a manufacturer who treats depth and contrast as non-negotiable specs, not general targets. That's the standard Caribee Sign holds to on every order.
Frequently Asked Questions
How hard is laser engraving?
Basic engraving is beginner-friendly thanks to modern software and preset material settings. Consistent depth, contrast, or compliance-grade precision (like signage work) takes real calibration experience and testing.
What is the difference between laser engraving and laser etching?
Engraving physically removes material, creating a 3D indented or raised mark. Etching only discolors the surface without removing depth, making engraving the more durable option.
Is laser engraving permanent?
Yes. It creates a permanent physical change to the material's surface. It won't fade, peel, or wash off, unlike printed or painted markings.
What materials cannot be laser engraved?
Avoid PVC, PTFE (Teflon), and other chlorine-containing plastics, as they release toxic fumes when vaporized. Test unfamiliar plastics before running a full production job.
Is laser engraving the same as laser cutting?
No. Engraving removes material from the surface only, while cutting passes the laser fully through the material to separate it. Many machines can do both.
How much does laser engraving cost?
Entry-level machines for hobbyists run roughly $200 to $1,000. Industrial-grade systems used for signage or metal marking can cost $20,000 or more, depending on power and features.
