Introduction
ADA restroom signs must sit within a strict federal window: 48 inches to 60 inches above the finished floor, measured to the baseline of the tactile characters. Miss that window by even an inch, and you're looking at a failed inspection, a compliance complaint, or a full reinstall.
That tolerance is unforgiving if you install for multiple clients—or finish a single build-out where the inspector is already on site. The rules do not change by project size.
Below you’ll find the exact height requirements, placement rules, common installer mistakes, and practical tips for getting ADA restroom signage right on the first try—not the second.
Key Takeaways
- Mount tactile characters 48"–60" above the floor (from baseline); 54" to center is the common standard
- Place signs on the latch side, centered on an 18"×18" clear floor space outside the door swing
- Use federal exceptions when double doors or no wall space block a standard latch-side mount
- Confirm California and other state rules that add requirements beyond federal ADA
- Prevent most failures: wrong measurement point, wrong door side, or ignored clearance zone
ADA Restroom Sign Height Requirements
Per the 2010 ADA Standards for Accessible Design, Section 703.4.1, tactile characters must sit with their baseline between 48 inches minimum and 60 inches maximum above the finished floor. That's a 12-inch window, not a single fixed height.
Measuring From the Right Point
This is where most confusion starts. Measure from the baseline of the tactile characters themselves, not from the sign panel:
- 48" minimum to the baseline of the lowest tactile character
- 60" maximum to the baseline of the highest tactile character
A sign with a decorative border, a large pictogram field, or extra white space can easily throw off a measurement if the installer eyeballs the panel edge instead of the character line.

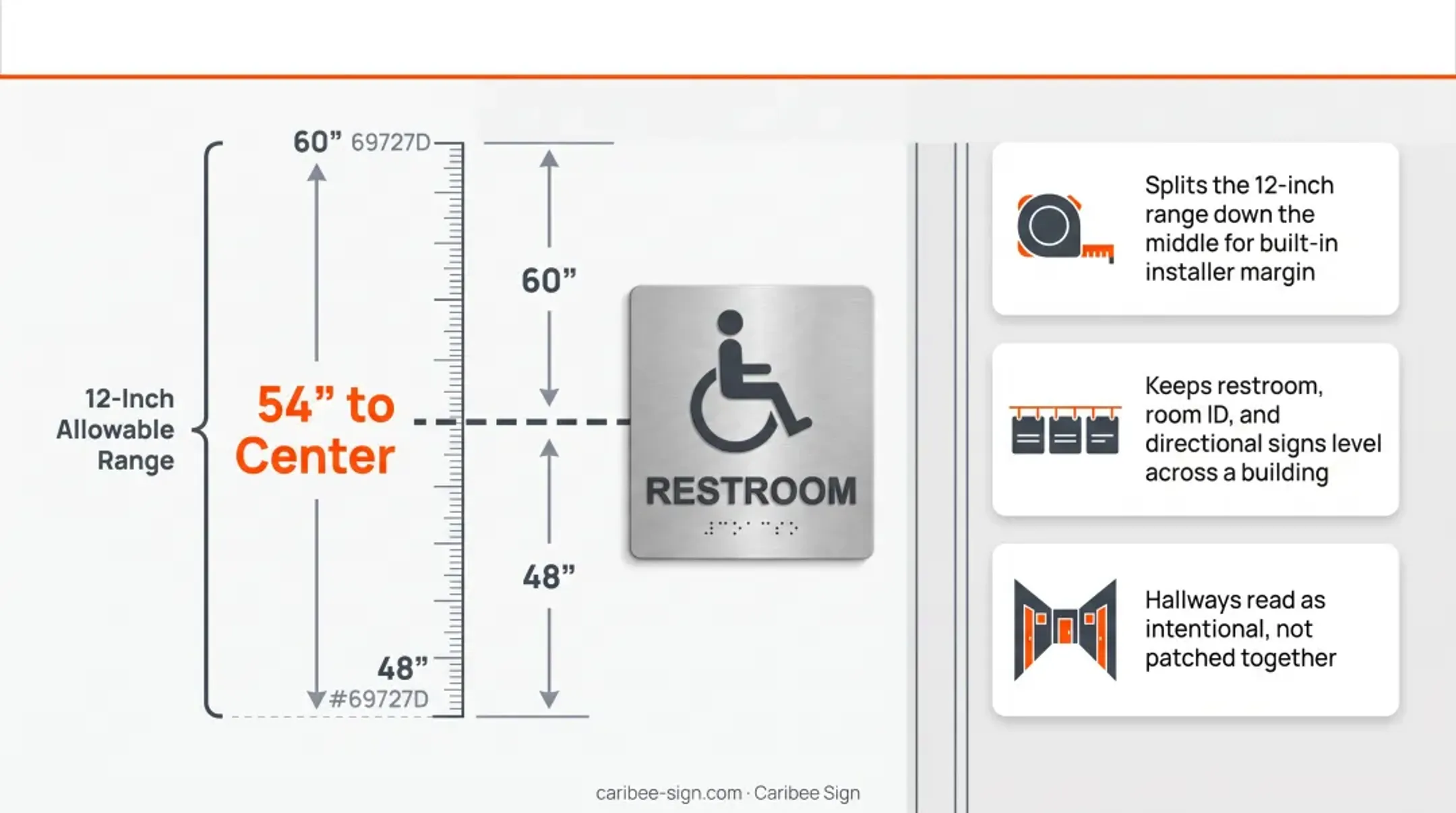

Why 54 Inches Became the Standard
54 inches to center shows up on nearly every ADA sign spec sheet in the industry. It splits the 12-inch allowable range down the middle, giving installers a built-in margin for error in both directions.
It also keeps sign lines visually consistent across a building. When every restroom, room ID, and directional sign sits at the same height, hallways look intentional instead of patched together.
Visual-Only Signs Follow a Different Rule
Not every sign in a building needs tactile characters. Purely visual signage (directional signs without Braille, for example) only needs to clear 40 inches minimum above the floor. Confusing this with the 48"-60" tactile rule is a common mix-up on multi-sign projects with both types installed.
California/State-Specific Height Variations
Federal ADA sets the floor, but several states build on top of it. California is the biggest example, and it changes more than most installers expect.
Under the 2025 California Building Code Advisory Manual, California measures to the bottom of the lowest Braille cells, not the bottom of the raised characters. It's a small distinction, but it shifts where you take your starting measurement.
California also requires geometric door symbols at restroom entrances:
- Men's rooms: an upward-pointing triangle
- Women's rooms: a circle
- Unisex rooms: the triangle superimposed on the circle
Mount these symbols 58"-60" above the floor, measured to the symbol's centerline.
Massachusetts takes a different approach, setting a flat 60-inch centerline for signage rather than a range. These state-level differences are usually minor tweaks, not wholesale rewrites of the federal rule, but they can trip up a compliance review if you're only checking federal ADA.
Always confirm local amendments with the building department before finalizing a project.
ADA Sign Location and Placement Rules
Height only solves half the equation. Placement (which wall, which side of the door, how much clear space) determines whether a sign is actually usable, not just technically mounted at the right elevation.
Latch-Side Wall Mounting
Under Section 703.4.2 of the ADA Standards, tactile restroom signs go on the wall on the latch (handle) side of the door, not on the door itself. The sign must also be centered on an 18" x 18" clear floor space.
That clear floor space has to sit entirely outside the arc of the door swinging to a 45-degree open position. Per U.S. Access Board guidance, that space exists so someone reading by touch has room to stand without the door swinging into them.
If there's no wall space on the latch side (common in tight corridors or retrofit buildings), the sign moves to the nearest adjacent wall, still meeting the same clear floor space requirement.
Double-Door Situations
Double doors introduce their own rule set:
- One active leaf: center the sign on the inactive leaf
- Two active leaves: mount the sign to the right of the right-hand door

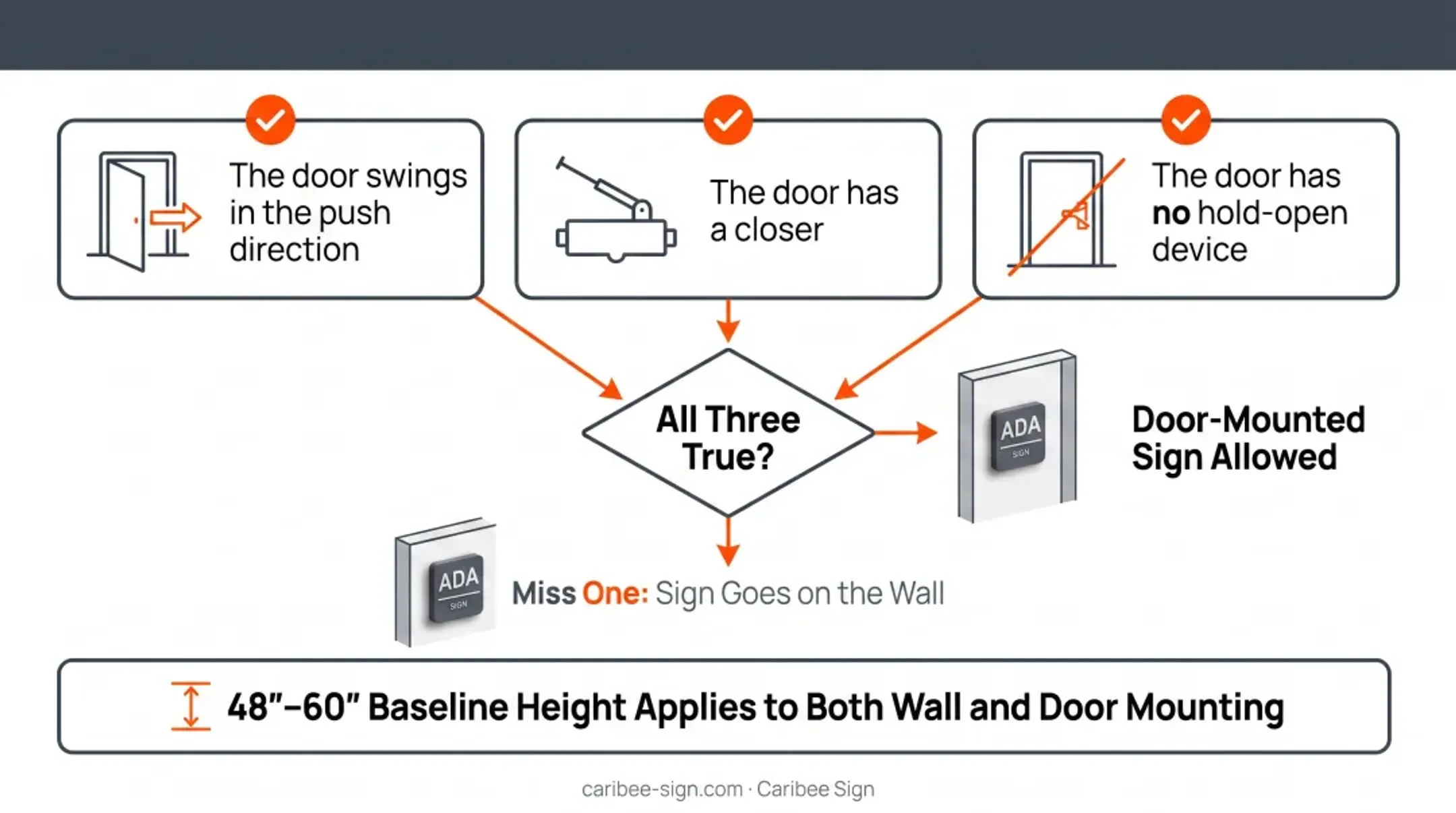

When a Door-Mounted Sign Is Allowed
Mounting directly on a door is the exception, not the norm, and it only works when all three conditions apply:
- The door swings in the push direction
- The door has a closer
- The door has no hold-open device
Miss any one of those three, and the sign needs to go back on the wall. Height requirements don't change: wall- or door-mounted, the sign still needs the 48"–60" baseline.
Mounting Tools and Installation Methods
Getting height right on paper doesn't matter if the physical install drifts. A short list of tools keeps installations consistent across multiple doors and buildings:
- Tape measure for baseline height checks
- Torpedo level to catch tilt before it's permanent
- Drill for peg-mount systems
- Low-tack tape for dry-fitting and confirming placement before committing
- Sign location plan noting height and wall for every door
Adhesive vs. Peg Mounting
Both methods show up on job sites, but they perform differently over time.
| Method | Pros | Cons |
|---|---|---|
| Foam tape + silicone | Fast, no drilling, clean finish | Weaker against impact, vandalism, humidity |
| Peg + silicone | Highly durable, resists wear and tampering | Requires drilling, slightly slower install |
Many experienced installers lean toward pegs for restrooms specifically, since these are high-traffic, high-touch areas where signs take a beating over the years.
Skipping guesswork on the sign itself helps too. Manufacturers like Caribee Sign build ADA signage to federal tactile, Braille, and character-height requirements before it leaves the shop. Installers can focus on placement instead of rechecking whether the characters or Braille grade are correct.
Common Height and Placement Mistakes
Most compliance failures aren't exotic. They come from a small handful of repeat errors that show up job after job.
Mistake 1: Measuring to the Wrong Point
The problem: The installer measures to the top or center of the sign panel instead of the tactile character baseline.
Why it happens: Signs with borders, decorative framing, or generous pictogram fields make it easy to confuse "sign height" with "character height."
The fix: Always measure from the floor to the baseline of the lowest and highest tactile characters, never the panel edges.
Mistake 2: Mounting on the Wrong Side of the Door
The problem: The sign ends up on the push side without a compliant closer, or on the hinge side instead of the latch side.
Why it happens: Installers often default to whichever wall has open space, rather than checking the actual rule first.
The fix: Confirm latch-side wall space before anything else. Only consider door-mounting if all three conditions from the previous section are met.

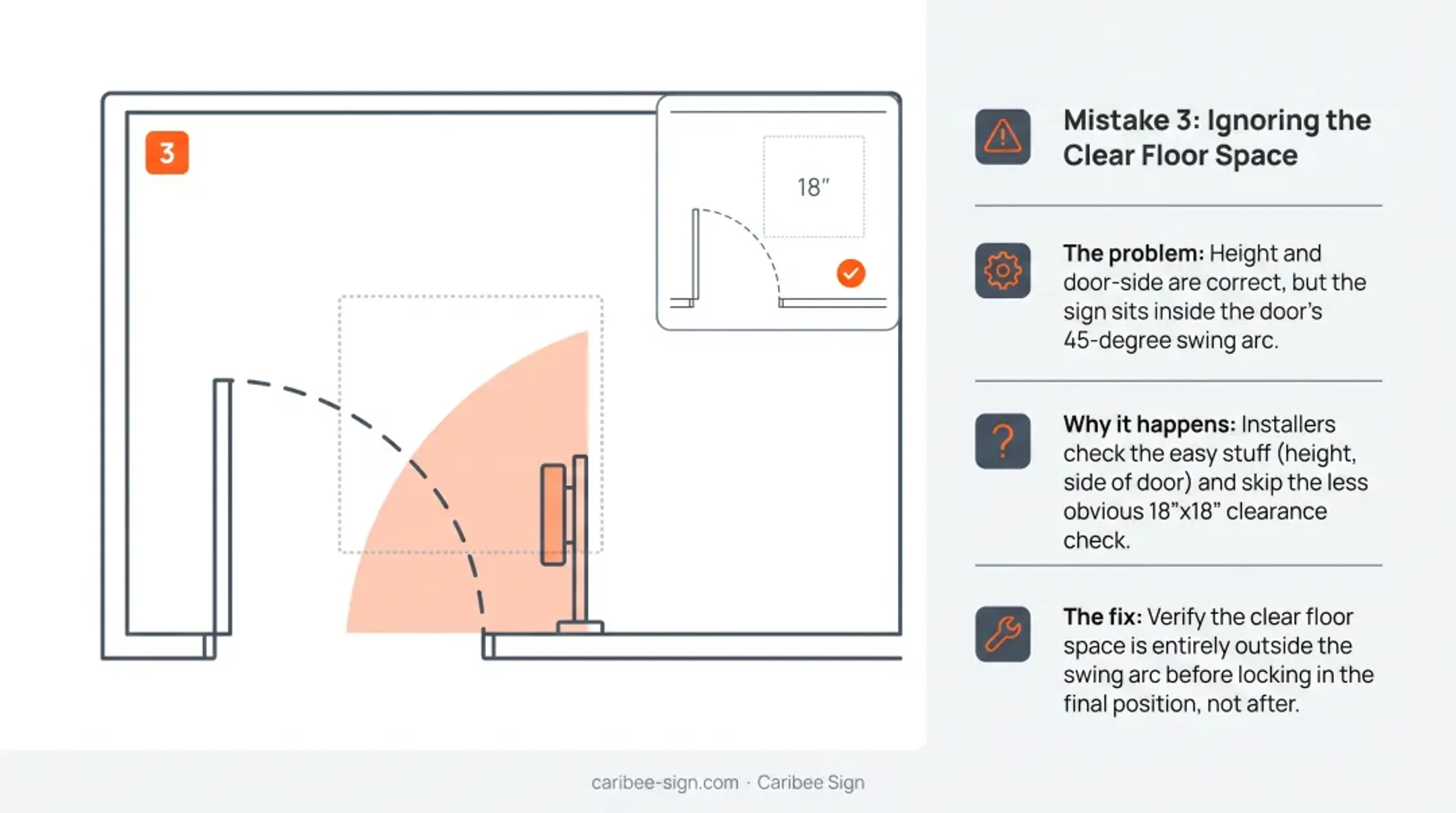

Mistake 3: Ignoring the Clear Floor Space
The problem: Height and door-side are correct, but the sign sits inside the door's 45-degree swing arc.
Why it happens: Installers check the easy stuff (height, side of door) and skip the less obvious 18"x18" clearance check.
The fix: Verify the clear floor space is entirely outside the swing arc before locking in the final position, not after.
Pro Tips for Getting ADA Sign Height Right Every Time
A few habits separate installers who pass inspection the first time from those who end up redoing work:
- Build a written sign mapping plan before installation day. For multi-sign buildings, mark exact heights and wall locations in advance so nobody's improvising on-site.
- Keep every sign in a building at the same height to center, typically 54", even when sign sizes vary. Consistency reads as intentional and keeps tactile reading lines predictable.
- Photograph every installed sign with a tape measure visible in the shot. Documentation like this protects against future disputes or inspection pushback.
- Bring in a professional installer for large or complex properties. Local sign associations are a solid resource for finding vetted contractors who know these rules cold.
Sign companies handling multiple client installs also reduce friction by working with a manufacturer that builds ADA compliance into the product from the start.
Caribee Sign produces restroom signage with Grade 2 Braille, raised tactile characters, and correct sizing already built in. That keeps the ordering side of a multi-location rollout from becoming its own compliance headache.
Frequently Asked Questions
How high should a restroom sign be?
ADA restroom signs must be mounted 48"-60" above the floor, measured to the baseline of the tactile characters. Most installers use 54" to center as the practical standard.
Where should a restroom sign be placed?
Signs go on the wall on the latch side of the door, centered on an 18"x18" clear floor space located outside the door's swing arc.
What is the standard size of a restroom sign?
There's no single mandated ADA size. Common sizes run around 8"x8" to 9"x6", with a required 6" minimum pictogram field where pictograms are used.
Can an ADA restroom sign be mounted on the door instead of the wall?
Only when three conditions are all met: the door swings in the push direction, it has a closer, and it has no hold-open device. Otherwise, the sign goes on the wall.
Does California have different restroom sign height rules than federal ADA?
Yes. California measures to the bottom of the Braille cells rather than raised characters, and requires geometric door symbols mounted 58"-60" to center.
What happens if my restroom sign isn't mounted at the correct ADA height?
Non-compliant height can trigger failed inspections, formal complaints, and potential litigation. You may also face the cost of removing and reinstalling the signage.
